Elektroenzephalographie Sintered Ag AgCl Electrode Cables For Neuroscience And Researcher
AgCl material EEG electrodes Features:

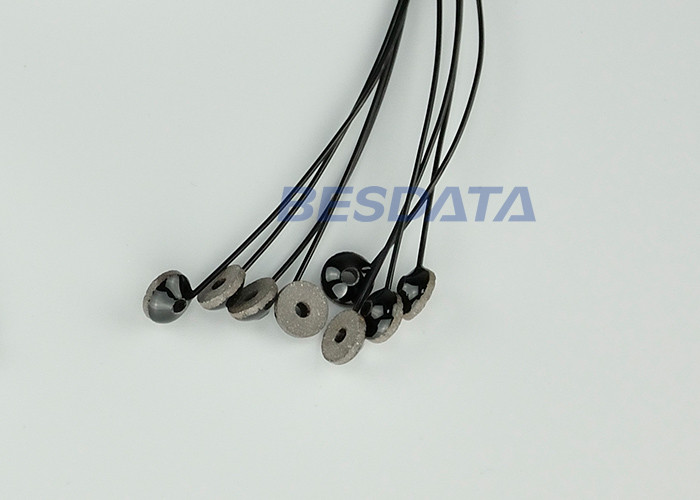

The Ag-AgCl mix is compressed into various configurations, no fillers or binders are used - only pure silver-silver chloride. A pliable silver wire is imbedded in the Ag-AgCl matrix to provide electrical connection by soldering or other means. The resulting pallet, disc and wire electrodes have the consistency of soft metal. They are easily reshaped by sanding, filing, cutting or drilling. They can be cemented and sealed to other materials or devices with epoxy adhesive.

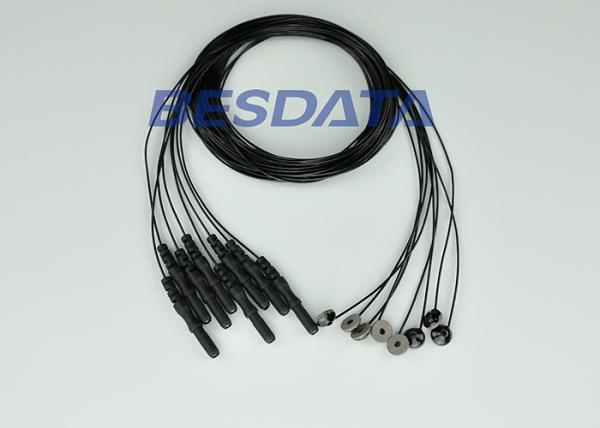

EEG Electrodes Wires
· PVC material and TPU material for selecting
· Tin plated copper core wire, is not easy oxidated.
· Shielding wire is optional
· 10 colors, Red, White, Green, Black, Grey, Brown, Blue, Purple, Orange, Yellow.
| Product Name | Cranial Nerves EEG Electrodes |
| Cup material | Sintered Ag/Cl |
| Cup diameter | 10mm/8mm/6mm/4mm |
| Connector Type | Din 1.5mm |
| Cable length | 1.5m |
| Cable diameter | 1.5mm |
| Cable material | TPU |
| Cable color | Red, White, Green, Black, Grey, Brown, Blue, Purple, Orange, Yellow |
| Shielding wire | Optional |
| Warranty | 1 year |
Properties of different types of electrodes when used in combination with a chloride containing gel
| Electrode | offset voltage,resistance and polarization | Rate of drift | Noise level | suitability for DC-coupled recording | long time contant AC-coupled recording |
| sintered AgCl | very low | very low | low | excellent | excellent |
| disposable AgCl | low | very low | low | good | excellent |
| silver | variable | variable | low | poor | |
| Gold-plated silver | variable | variable | low | poor | good |
| platinum | very high | n.a | low | poor | good |
| stainless steel | very high | n.a | medium | poor | medium |
| Tin | high | high | high | poor | poor |
These insulated or mounted reusable electrodes are specifically designed for custom apparatus. They are made with high quality sintered Ag-AgCl sensor electrodes. Silver-silver chloride electrodes are very stable, performance is exceptionally reproducible.
Compared with plated chlorided silver:
Unlike plated or chlorided silver, Ag-AgCl electrodes are solid throughout, no fillers or binders are used only pure silver-silver chloride. Should the surface become damaged or contaminated, a new surface can be exposed to restore the electrode's original performance.
Because of their stability and reproducibility, Ag-AgCl electrodes make excellent STANDARD and REFERENCE electrodes.
